About This

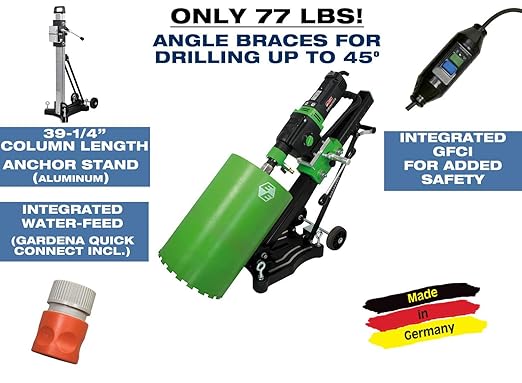

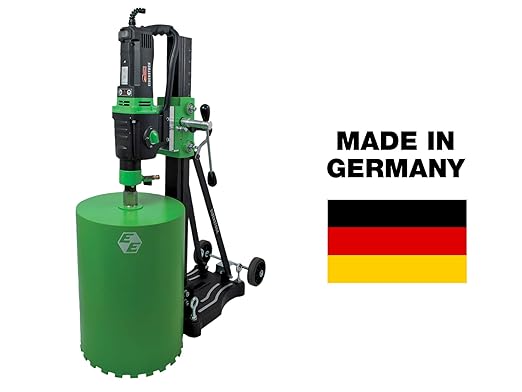

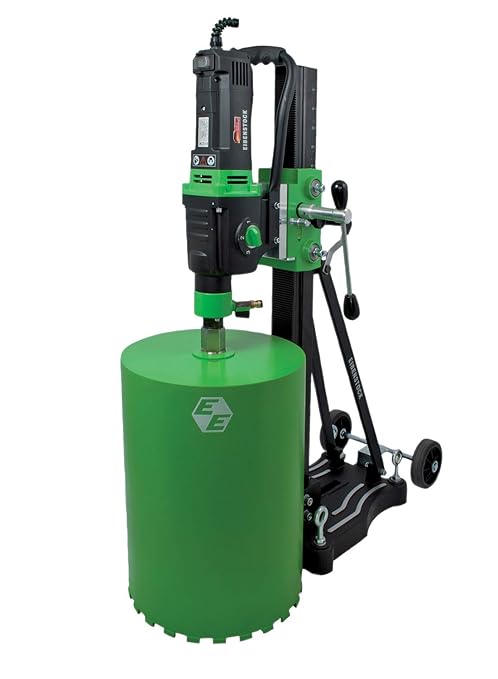

• Industry's most lightweight and portable combination of drill stand and motor: Heavy-duty, light-weight core drill rig with anchor stand, 14" diameter hole capacity, with 1-1/4" x 7” male Spindle connection for standard diamond drill bits. An additional 5/8” male adapter is included.
• The EBM 352/3 PSA (20 Amp 3-speed motor with combination anchor/vacuum stand) drills holes up to 14" in diameter in concrete, reinforced concrete, asphalt, and natural stone. The motor can also be mounted on a variety of drill rigs. No other Diamond Core Drill Rig in this class is so light and portable, weighing only 77 lbs. The drill stand has two 5" wheels for easy portability.

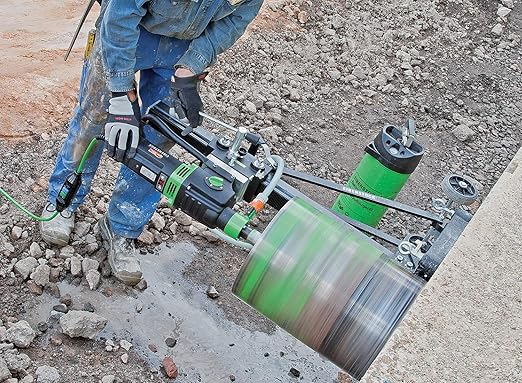

• Uses for wet drilling in reinforced concrete, natural stone, and asphalt. Ideal for plumbing, mechanical, electrical, and general construction, as well as civil engineering.
• Motor Features: 20-Amp Motor: Powerful with high reserves and long lifespan. 3-Speed Gearbox: Oil bath design for optimal lubrication. Safety Clutch: Mechanical feature enhances protection. Tool-Free Mounting: Dovetail slide for easy motor attachment to drill rigs. Bubble Levels: Integrated for precise alignment. Overload Protection: Temperature control and optical overload indication. Constant Speed: Maintains speed during use. Brush Replacement Indicator: Service-LED alerts for carbon brush replacement 10 hours in advance.
• Drill Stand Features: Adjustable Column: Angled up to 45˚ for versatile drilling. Compact Combination Base: Stability with anchor or vacuum fixings. Tool-Free Feed Lever Change: Easy lever switching on-site without tools. Integrated Precision Aids: Includes a bubble level and hole centering aid for accurate drilling. Removable Wheel Axle: Enhances portability for easy transport.

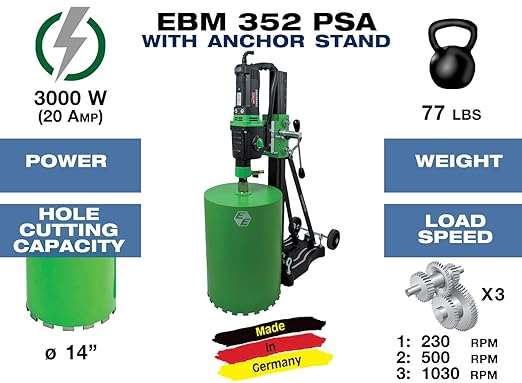

• Max. Hole Diameter: 14"
• Speed: 230, 500, 1030 RMP
• Total Weight (Motor & Rig): 77 lbs (28 lbs & 49 lbs)
• Power: 20 Amp / 110 V

Overview

• Brand : CS Unitec
• Power Source : Corded Electric
• Maximum Rotational Speed : 1030 RPM
• Voltage : 110 Volts
• Amperage : 20 Amps
